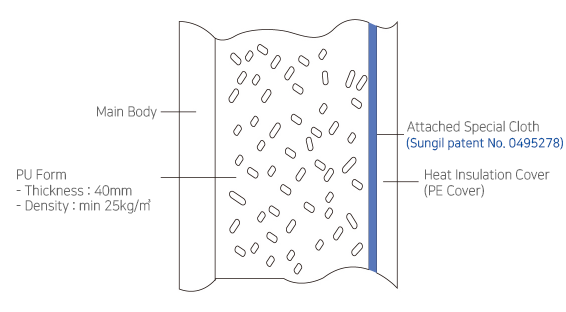

1. Composition of Insulation panel
- - Excellent insulation of GRP Material itself with Eco-friendly Polyurethane heat insulating material prevents freeze & water condensation.
- - There is non-woven fabric with excellent adhesion inside GRP insulated paenl, ensuring shape stability of panel throughout longer time periods.
- - GRP insulated panel with 4 layers sturucture ensures excellent insulating effect.
- - Thickness of insulated panel: 25mm-33mm.

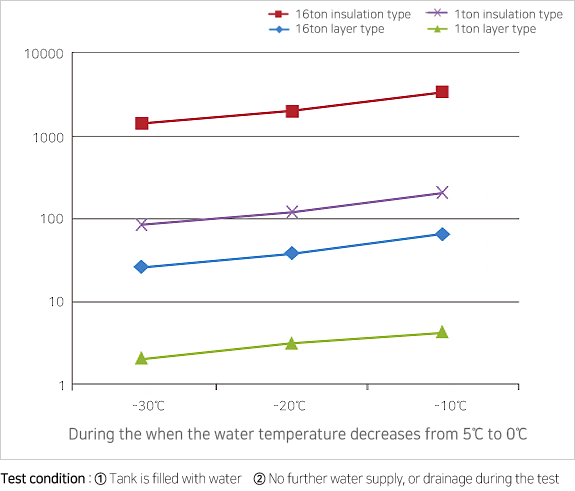

| Capacity | Classification | Temperature of Atmosphere | ||
|---|---|---|---|---|
| -10℃ | -20℃ | -30℃ | ||
| 16㎥ | Single Layer Type | 25hr | 20hr | 13.5hr |
| Insulation Type | 164hr | 81hr | 58.5hr | |
| 1㎥ | Single Layer Type | 11hr | 6hr | 4hr |
| Insulation Type | 37.5hr | 23hr | 13.5hr | |

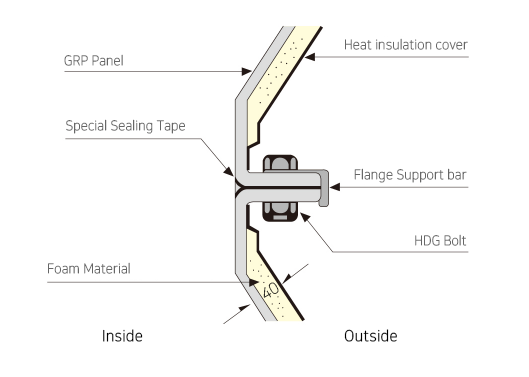

Drawing of the panel joint part

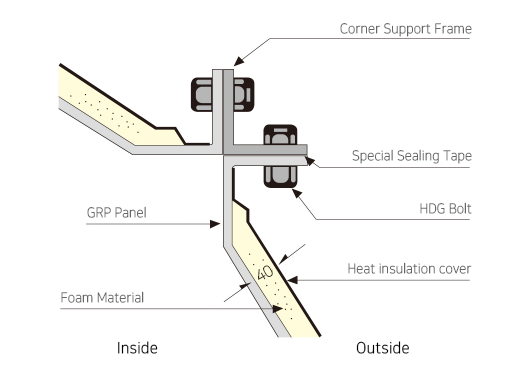

Drawing of the panel corner part
