GRP Water Tank
- Water Tank Panel
- Watertightness, Drain Capability and Strength of Water Tank
- Reinforcement Structure
- Partition Type Water Tank

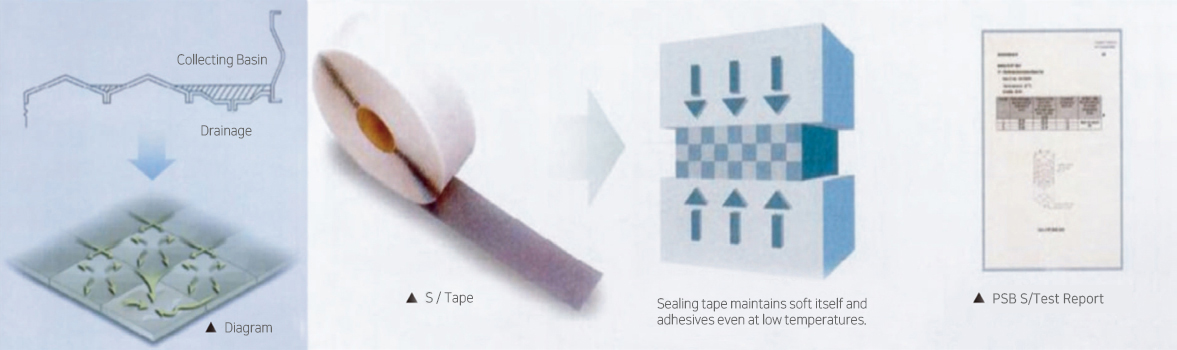

1. Perfect watertight & Drain System
- - As using foaming type sealant tape which is excellent water proof & force of restitution, maintains perfect non-leakage of the Water tank.
- - The concave drain panel facilitates complete and quick drainage.
| Type of Sealing Tape | Characteristic | |
|---|---|---|
| Optional Items | EVA+PVC | Applicable to 50℃ |
| Butyl+PVC | Preventing to Stick PVC tape out from GRP Panel | |
2. Strength & Durability of GRP Water Tank
| Section | Design Standard |
|---|---|
| Hydrostatic Pressure | Water pressure reinforcement 4 times standard Transformation rate in filled u with water: Less than 1% form water tank heigh |
| Wind Force | Less than 60m/sec |
| Earthquake Force | Stable and safe till magnitude 5.0 (Over magnitude 5.0, it needs additional reinforcement) |
| Snow load | 60Kg/㎡, , Snow fall less than 30cm |
| Illumination Rate | Less than 0.1% |
| Out-fitForce | No leakage under condition of vertical 100Kg after install of 100A fitting with 70mm span supprot |
| Water Temperature | Usable temperature: Less than 30℃, Limited temperature: Max 70℃ |
| Water quality | Tap water, well water: chlorine below 50mg/ℓ Seawater: applicantion Externally Reinforced water tank(max 3m height) |
