1. Special feature

Utilizing maximum capacity
• - In the basement or other confined areas, it is possible to eliminate unusable space,and utilize the maximum space, by installing apartition type tank.

Various uses
• - If partition type tanks are installed, one section can be used for drinkin gwater, and the other section for service water(Ex.fire fighting).

Easy Maintenance
• - It is convenient for maintenance, because two tanks can be installed as one unit.

Cost effectiveness
• - The cost and installation of 1 partition tank is cheaper than 2 separates tanks.

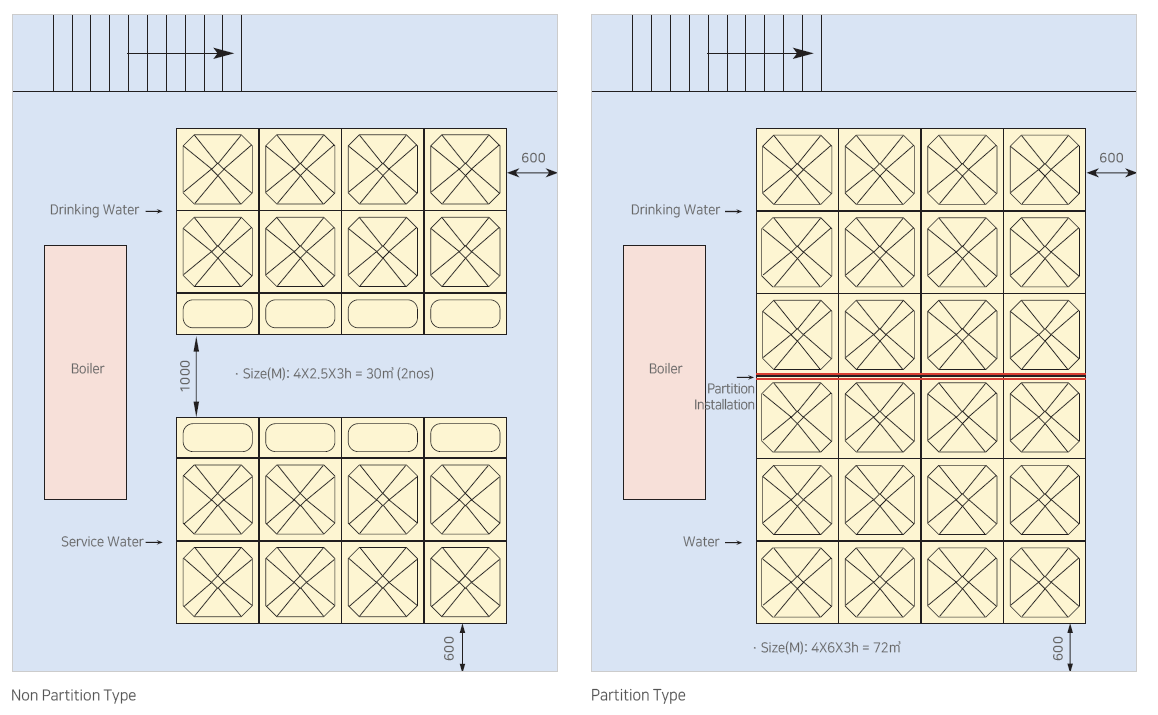

2. Partition Installation

3. Effect for Partition Water Tank System

• - If tanks for two different uses are needed in a confined area or boiler room, a 72㎥ partition type tank can be installed to use half for drinking water, and half for service water. If separate tanks are installed, however, you have to installed two tanks with a maximum of 30㎥, because you need to have 1 meter distance between tanks for maintenance and operating space.

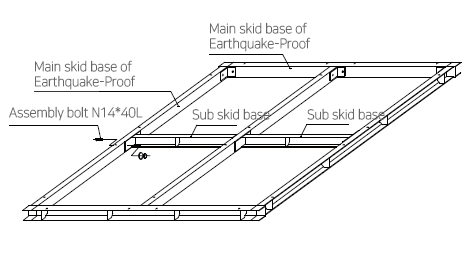

4. Earthquake-Proof Skid Base System

Height	Contents		Bending Stress(kg/c㎡)	Drooping((cm)
2.5mH	Main Skid Base	Long term	1170 < 1600(Allowable value) ■ O.K	0.15 < 0.25(Allowable value) ■ O.K
		Short term	1340 < 2400(Allowable value) ■ O.K	0.17 < 0.33(Allowable value) ■ O.K
	Sub Skid Base	Long term	1590 < 1600(Allowable value) ■ O.K	0.21 < 0.25(Allowable value) ■ O.K
		Short term	1830 < 2400(Allowable value) ■ O.K	0.25 < 0.33(Allowable value) ■ O.K
4mH	Main Skid Base	Long term	790 < 1600(Allowable value) ■ O.K	0.06 < 0.25(Allowable value) ■ O.K
		Short term	900 < 2400(Allowable value) ■ O.K	0.27 < 0.33(Allowable value) ■ O.K
	Sub Skid Base	Long term	1540 < 1600(Allowable value) ■ O.K	0.15 < 0.25(Allowable value) ■ O.K
		Short term	1750 < 2400(Allowable value) ■ O.K	0.17 < 0.33(Allowable value) ■ O.K

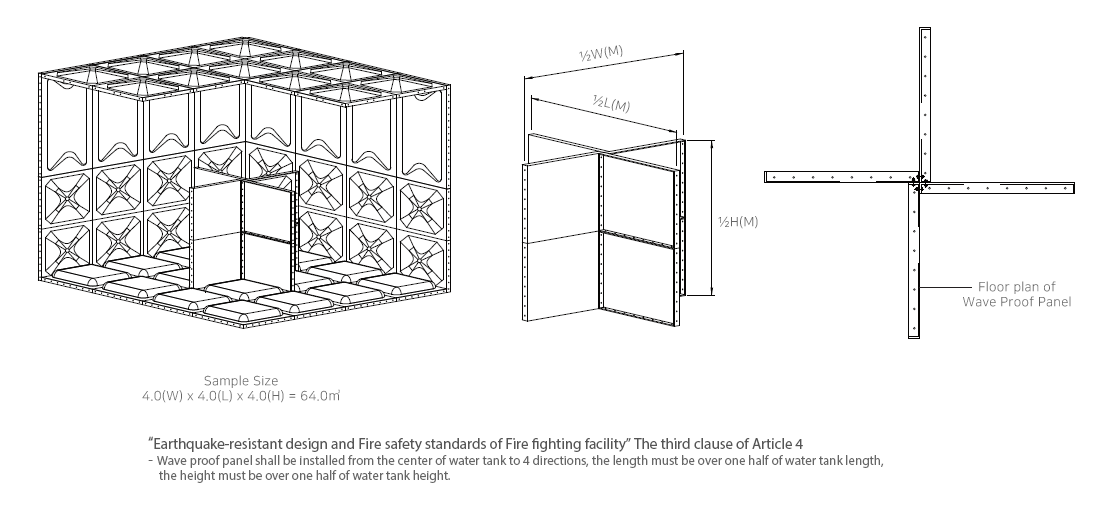

5. Wave Proof Panel for Earthquake-Proof

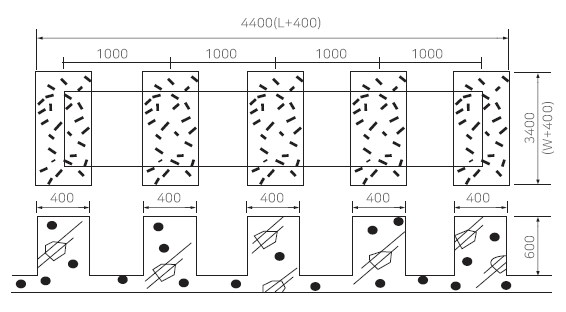

6. Installation Standard(Pad and Space)

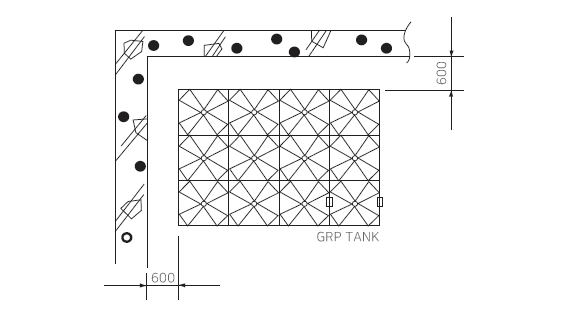

Standard of Base Concrete PAD Installation and Space - For maintenance of GRP tank, it needs extra space at least 600mm from wall and 1,000mm from ceiling.
