Global company in GRP industry with cutting-edge facilities and leading technology
GRP Water Tank
- Water Tank Panel
- Watertightness, Drain Capability and Strength of Water Tank
- Reinforcement Structure
- Partition Type Water Tank

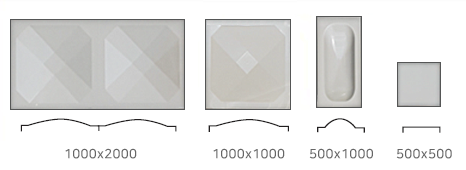

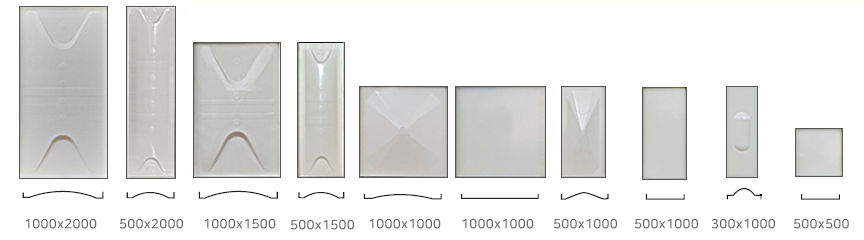

1. GRP Panel Model
| Wall Panel |
 |
Drain Panel |
 |
||
|---|---|---|---|---|---|
| Bottom Panel |
 |
Roof Panel |  |
Manhole Panel |
 |

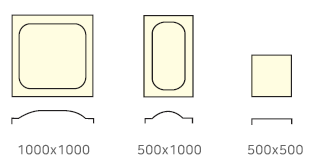

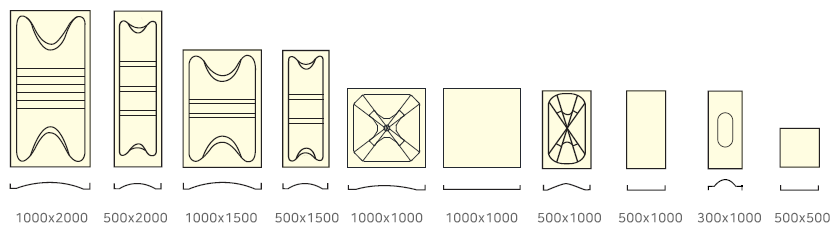

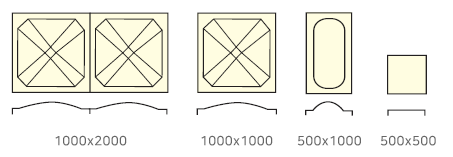

2. GRP Panel Formation
| Wall Panel |
 |
Drain Panel |
 |
||
|---|---|---|---|---|---|
| Bottom Panel |
 |
Roof Panel |  |
Manhole Panel |
 |

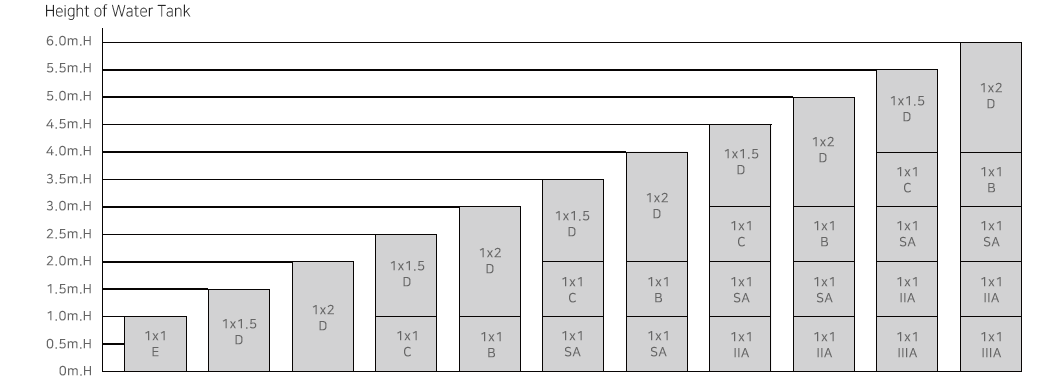

3. GRP Panel Composition by Height
 |
|||||||||||
| Grade of bottom panel | E | D | D | C | B | SA | SA | IIA | IIA | IIIA | IIIA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade of drain panel | C | C | C | B | SA | SA | IIA | IIA | IIA | IIIA | IIIA |
| Grade of side bottom panel (Flat,0.5x1) |
D | B | B | B | B | SA | SA | IIA | IIA | IIIA | IIIA |
| Grade of side bottom panel (Flat,1x1) |
D | B | SA | SA | IIA | IIA | IIA | IIIA | IIIA | IIIA | IIIA |
| ※ Current A grade → Unify to SA grade ※ Current IA grade → Unify to IIA grade | |||||||||||
4. Panel Physical Properties (KS F 4811 Standard)
| Item | Unit | Standard | Result | Test Method | Remark |
|---|---|---|---|---|---|
| Tensile Strength | MPa | Over 60 | 91.4 | KS F 4811:2016 | |
| Bending Strength | MPa | Over 80 | 200 | KS F 4811:2016 | |
| ElasticmodulesinBending | MPa | Over 6000 | 15287 | KS F 4811:2016 | |
| Glass Fiber Content | % | Over 25 | 31 | KS F 4811:2016 | |
| Barcol Hardness | - | Over 30 | 61 | KS F 4811:2016 | |
| Moisture Absorption | % | Below 1.0 | 0.05 | KS F 4811:2016 | |
| Hydrostatic Pressure | Over4 times | 4 times | KS F 4811:2016 |

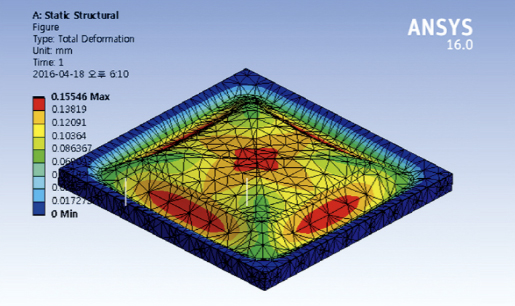

5. Stress analysis of GRP Panel
- GRP Water tank panel is designed with special shape for maximizing safety against stress and deformation, so it has better structural strength than normal circle designed panel.
- As GRP Water panel is manufactured by oil-hydraulic press under high temperature and high pressure, it maintain stop water pressure strength and there is nodimensional deviation by temperature change.
